INTUCAB™ 4FW50T 4'' BGM Speaker

4FW50T-W01-Black_Front_UpRight_RGB_72dpi_W490x590px4FW50T-W02-White_Front_UpRight_RGB_72dpi_W490x590px4FW50T-W03-Black_Front_UpLeft_RGB_72dpi_W490x590px4FW50T-W04-Left_Front_UpLeft_RGB_72dpi_W490x590px4FW50T-W05-Black_Front_Straight_RGB_72dpi_W490x590px4FW50T-W06-White_Front_Straight_RGB_72dpi_W490x590px4FW50T-W07-Black_FrontNoGrille_Straight_RGB_72dpi_W490x590px4FW50T-W08-Black_Rear_Straight_RGB_72dpi_W490px4FW50T-W09-Black_Top_Straight_RGB_72dpi_W490x590px4FW50T-W10-Black_Front_UpRightBracket_RGB_72dpi_W490x590px4FW50T-W11-Black_Front_UpRightCoupler_RGB_72dpi_W490x590px4FW50T-W12-Black_Front_UpRightRope_RGB_72dpi_W490x590px

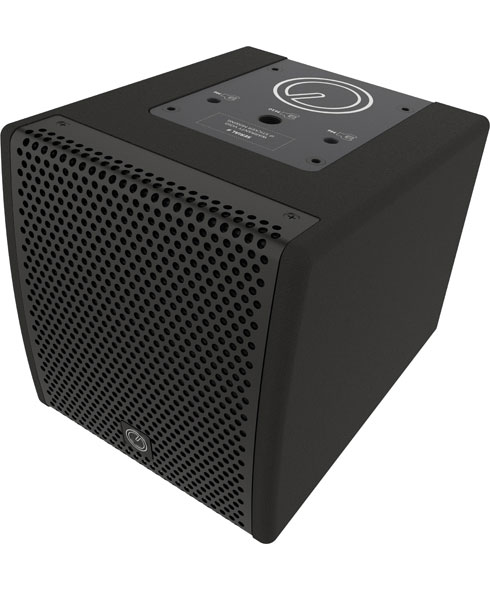

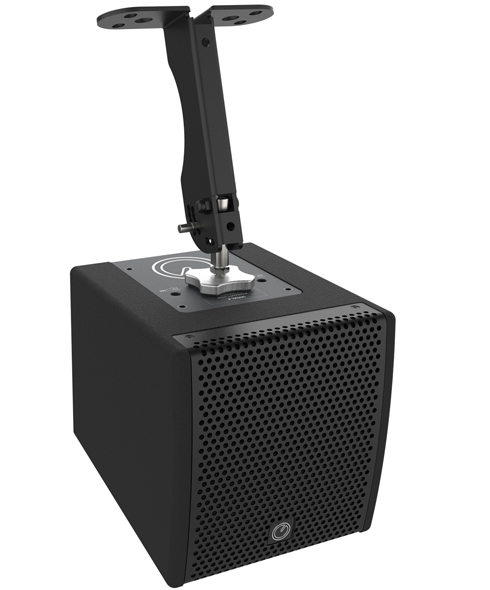

The INTUCAB™ 4FW50T is a wideband background music speaker for indoor applications where an unobtrusive appearance and mechanical ruggedness must be combined with above-average SPL and pristine sound quality. With 16 Ohms of impedance, it is perfectly suited for low-impedance applications with up to 4 speakers in parallel, and the optionally available input transformer kit makes integration with 100V systems easy as well. Catering for the ease of cabling in fixed installations, an additional 5.0mm terminal strip is provided. The mounting options include M6 and M10 mounting points, allowing for suspended mounting, truss mounting and bracket mounting. Available in black and white structural paint finish for further flexibility. For fullrange applications, a combination with the INTUCAB™ 8SM300T Subwoofer is recommended.

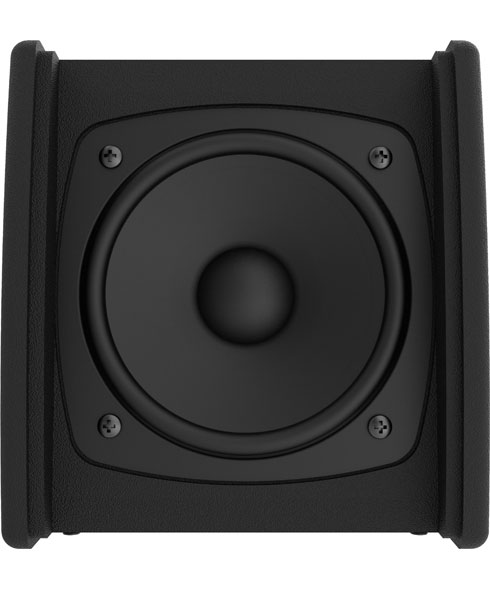

  • 4’’ Wideband driver, 20W AES power handling

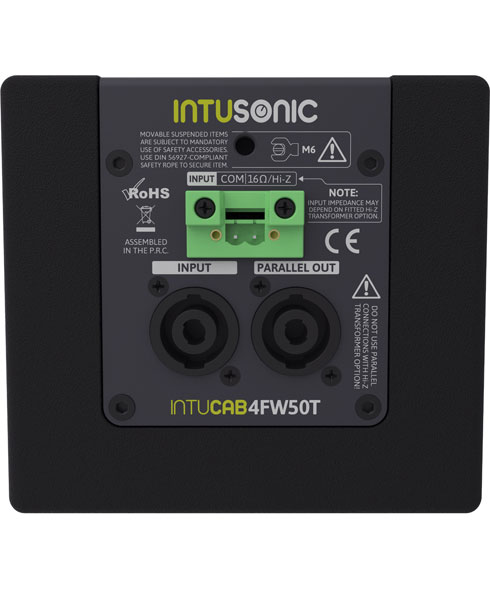

  • Dual Speakon-compatible connectors (parallel)
  • 5.0mm terminal strip connector in parallel

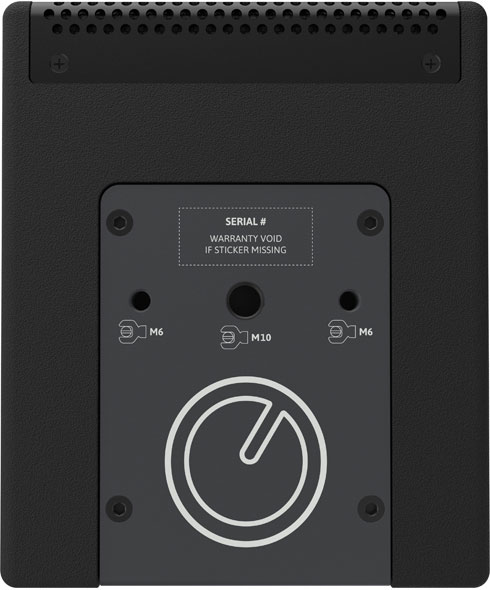

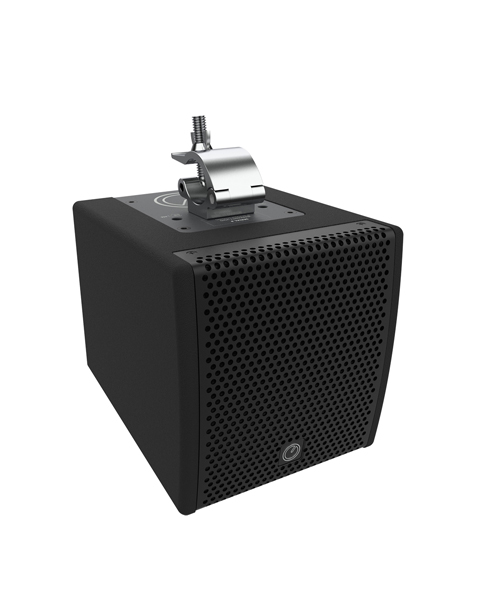

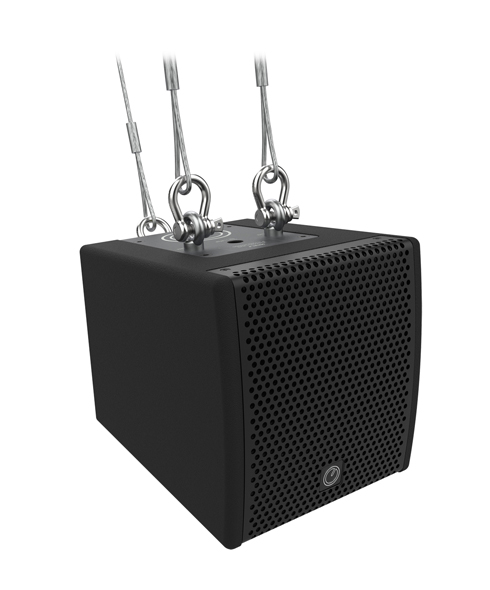

  • M10 truss hook mounting point, plus 3xM6 suspension points
  • 12mm MDF construction

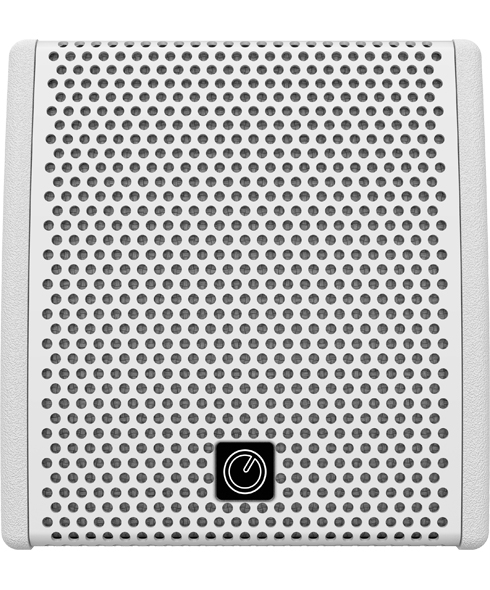

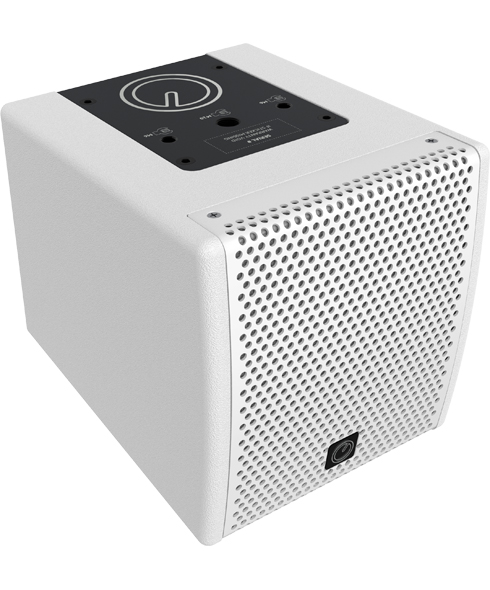

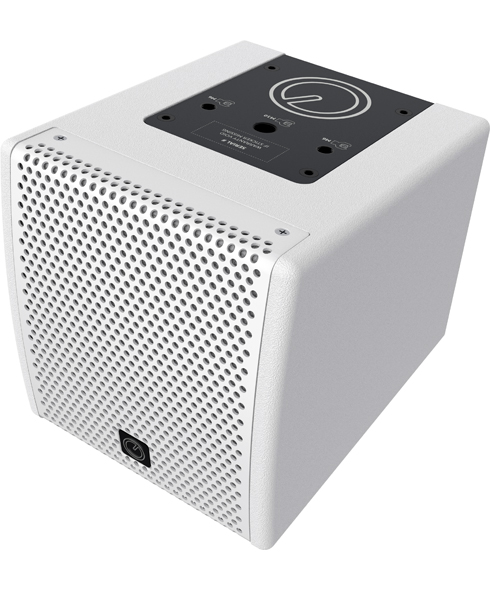

  • Structured scratch-resistant paint, black or white

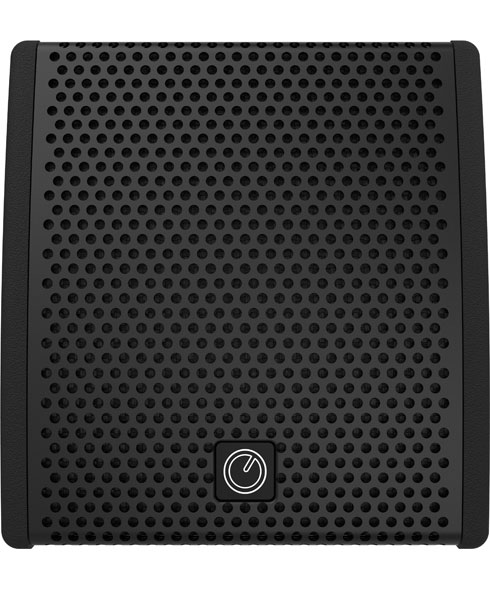

  • Rugged steel front grille with cosmetic rear-side foam
  • 100V transformer kit option (UTK20 – sold separately)
  • CE/ROHS compliant
  • Frequency response (-3dB): 100Hz-15kHz
  • Sensitivity (1W/1m) / Max SPL: 84dB/102.5dB
  • Dispersion: 120° conical
  • Impedance: 16Ω
  • Power handling: 20W (AES)
  • Driver / Design: 4’’ Wideband / closed
  • Material: 12mm MDF
  • Surface: paint
  • IP Rating: 20
  • Dimensions WxDxH: 130x160x138mm
  • Weight: 1.95 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN55035:2017

LVD Directive 2014/35/EU
EN62368-1

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018

User manual
Datasheet
Picture archive
ApplicationExample CutSheet Small-Mid-Retaurant ENG 2020 RevA (CMYK Text)
ApplicationExample CutSheet Small CoffeeBar ENG 2020 RevA (CMYK Text)
ApplicationExample CutSheet Retail Store ENG 2020 RevA (CMYK Text)
ApplicationExample CutSheet Child Leisure ENG 2020 RevA (CMYK Text)

Variation 2

DetailsGTIN-13MSRP*
Intusonic IntuCab 4FW50T (A) (LoZ White) [UV-NPC] SC
Order Code: 1305211
5060502923011Call
Single cartons per master carton (PU): 4
AC Cord: NPC
HS Code: 8518210000
Single carton - Size: 215/190/195mm (0.00796575cbm), Weight: 2kg
Master carton - Size: 25/445/396mm (0.0044055cbm), Weight: 220kg

Variation 1

DetailsGTIN-13MSRP*
Intusonic IntuCab 4FW50T (A) (LoZ Black) [UV-NPC] SC
Order Code: 1305201
5060502923004Call
Single cartons per master carton (PU): 4
AC Cord: NPC
HS Code: 8518210000
Single carton - Size: 215/190/195mm (0.00796575cbm), Weight: 2kg
Master carton - Size: 25/445/396mm (0.0044055cbm), Weight: 220kg

*The MSRP indicates the manufacturer’s suggested net retail price, and is displayed in USD or another currency automatically converted from USD at the applicable daily exchange rate. The MSRP excludes any VAT (if applicable).
