INTUPAK™ VRE11 RS485 Remote Panel

VRE11-W01-+VLA42-Front_Straight_On_RGB_72dpi_W845x337pxVRE11-W02-Front_Straight_On_RGB_72dpi_W845x337pxVRE11-W03-Front_UpRight_On_RGB_72dpi_W845x337pxVRE11-W05-Rear_UpRight_InWall_RGB_72dpi_W845x337pxVRE11-W06-Rear_UpRight_OnWall_RGB_72dpi_W845x337pxVRE11-W04-Rear_UpRight_On_RGB_72dpi_W845x337pxVRE11-W07-IRB44-Front_UpLeft_RGB_72dpi_W845x337px

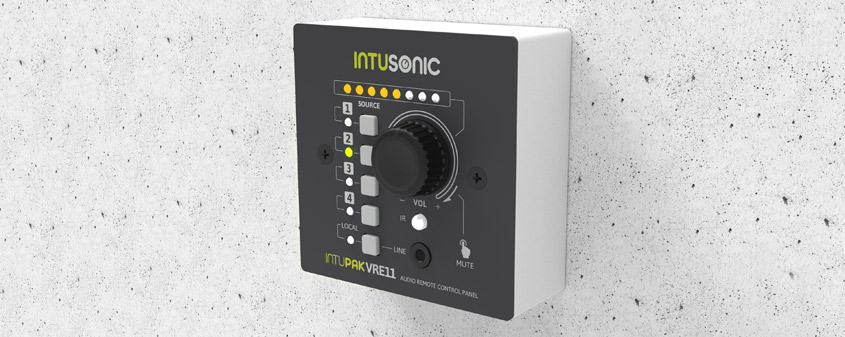

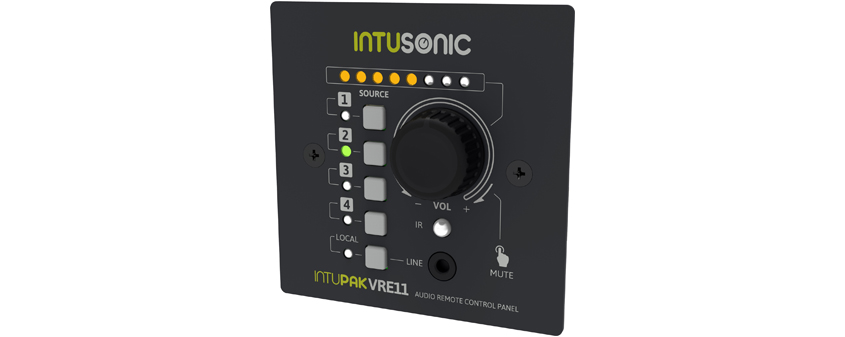

Despite its unimposingly elegant looks, the INTUPAK™ VRE11 is a powerful and versatile user frontend for Intusonic’s RS-485 enabled audio control systems. It fits standard wall box sizes with minimal depth and hence can be mounted right where its needed – in the room to be controlled. A standard CAT network cable is sufficient for connections; no additional power supply is required. Due to its daisy-chaining possibilities, more than one unit can be installed in a room, with the last operated one setting the system, and those settings being replicated on all VRE11 panels as well as the connected main unit. A local audio feed is possible as well, via the provided 3.5mm jack. For even better convenience, the VRE11 also sports an infrared remote control receiver and comes with a IRB44 remote control right out of the box. The VRE11 is compatible with the VLA42 control node and other RS-485 enabled INTUSONIC audio systems.

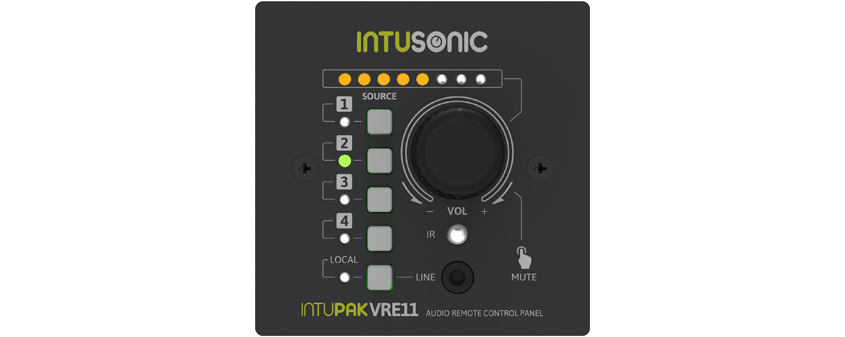

  • Replicates all main unit controls: source selector, volume control, volume indicator (8 LEDs)
  • Additional local stereo 3.5mm TRS input (mono audio transmission to main system)

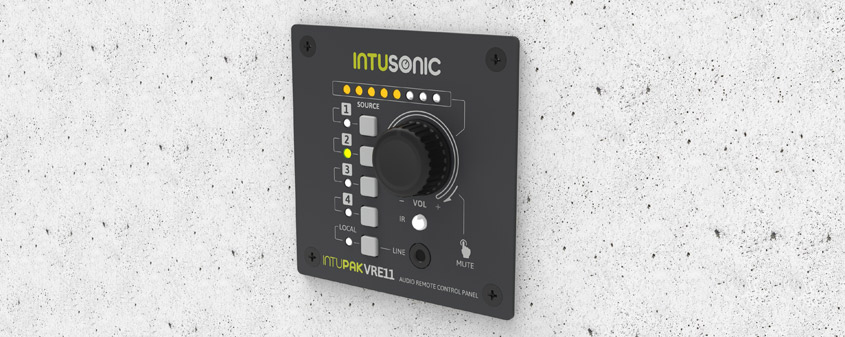

  • Includes 2 metal panels, compatible with common EU/GB wall box sizes
  • Connection to main unit via standard Cat5/Cat6 cable

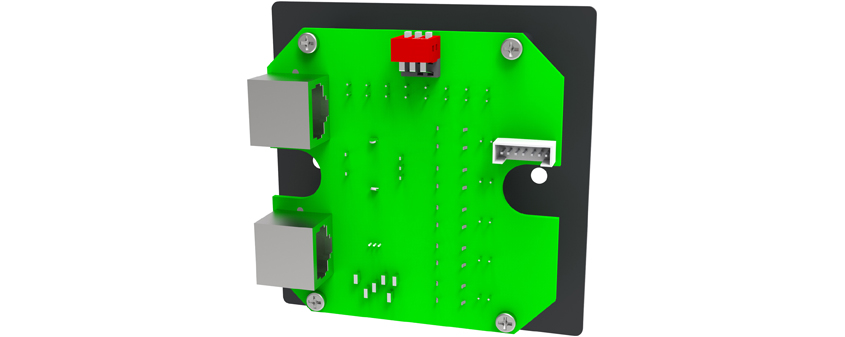

  • Assignable to one of 8 zones via on-board DIP-switch
  • Multiple units can be daisy-chained with “last setting rules” system

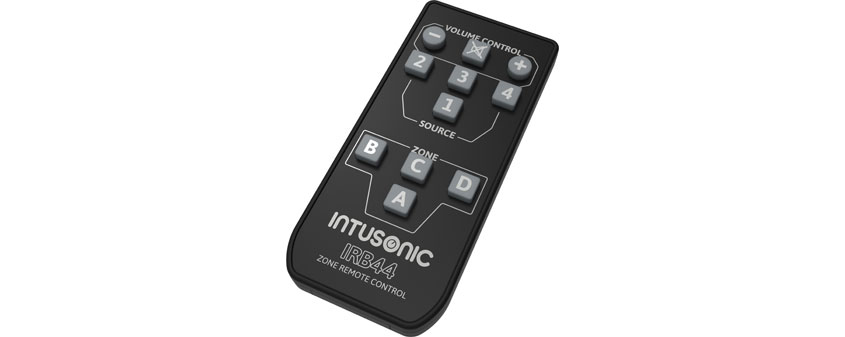

  • IR remote feature (IRB44 remote control included)
  • No PSU required – power supply provided by main unit (max. 50m)

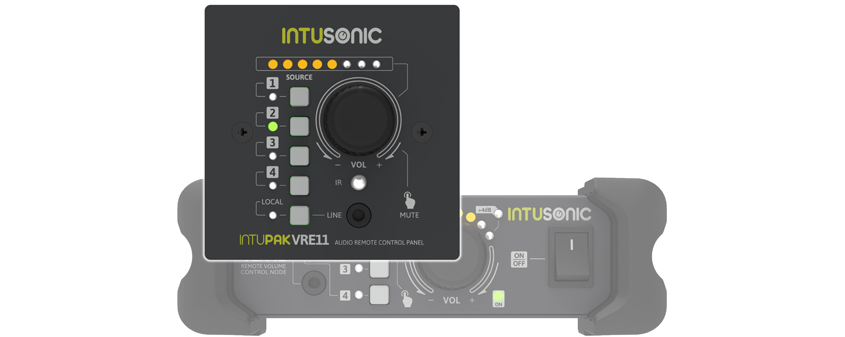

  • Compatible with VLA42 and other Intusonic products with RS485 source/volume setting
  • CE/ROHS compliant

Data connection: Intulink™ (RS485) via CAT5/6
Power supply: ±12V DC via Intulink™ bus
Audio Input: 3.5mm stereo TRS (mono summed)
Max. Number of zones: 8
Dimensions WxDxH: 86x86x42 mm (/w knob)
Mounting depth: 30 mm
Weight: 0.15kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN55035:2017

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018

User manual
Datasheet
Picture archive
ApplicationExample CutSheet Conference Suite ENG 2020 RevA (CMYK Text)
ApplicationExample CutSheet Retail Store ENG 2020 RevA (CMYK Text)
ApplicationExample CutSheet Small CoffeeBar ENG 2020 RevA (CMYK Text)

INTUPAK™ VRE11

DetailsGTIN-13MSRP*
Intusonic IntuPak VRE11 (A) [UV-NPC] SC
Order Code: 2019501
5060502923271Call
Single cartons per master carton (PU): 8
AC Cord: NPC
HS Code: 8519890000
Single carton - Size: 103/103/60mm (0.00063654cbm)
Master carton - Size: 2/215/215mm (9.245E-5cbm), Weight: 135kg

*The MSRP indicates the manufacturer’s suggested net retail price, and is displayed in USD or another currency automatically converted from USD at the applicable daily exchange rate. The MSRP excludes any VAT (if applicable).
