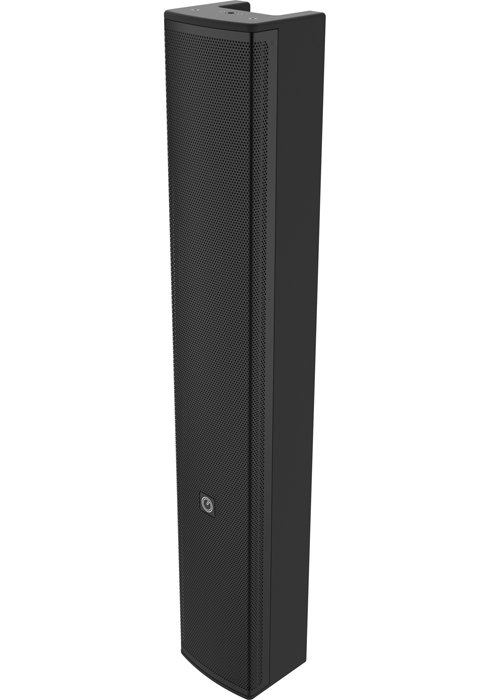

INTUCAB™ 4VM100T 2-Way Column

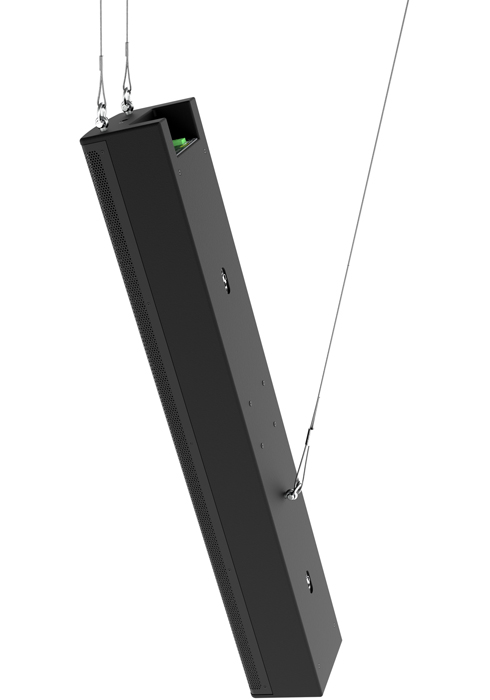

The INTUCAB™ 4VM100T column array is a real full range speaker specifically designed for multimedia applications. It offers precise dispersion with tight vertical control to avoid unwanted reflections from ceilings and floors, but wide horizontal coverage. Custom-designed waveguide and phase plug parts allow this speaker to perfectly address the medium-throw requirements of seated audiences in class rooms, lecture rooms, chapels and board rooms. Mounting options include flying, vesa brackets, and flush wall mounting. Available in black and white structural paint finish.

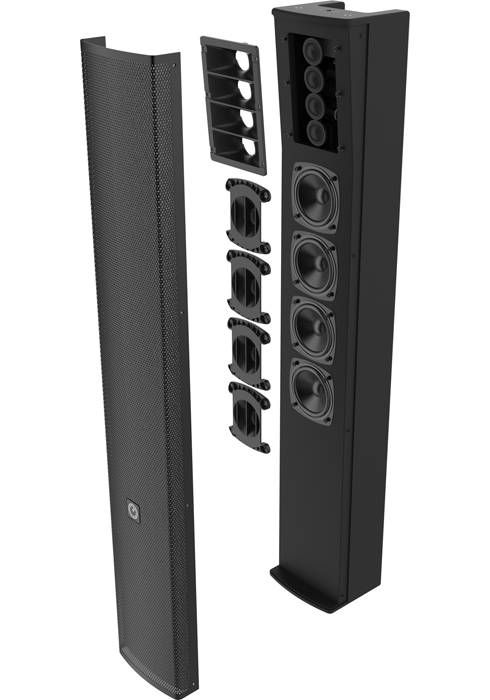

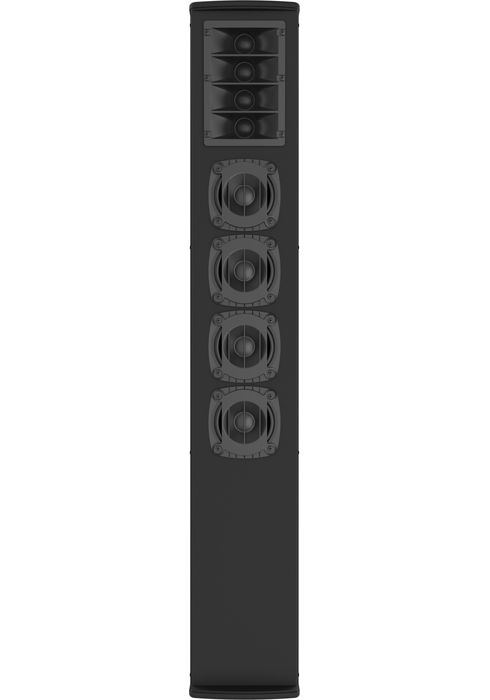

• 4×4’’ LF drivers with phaseplug in closed cabinet
• 4×1’’ Silk dome tweeters in 5° down-facing wave guide
• Focused vertical and wide horizontal dispersion

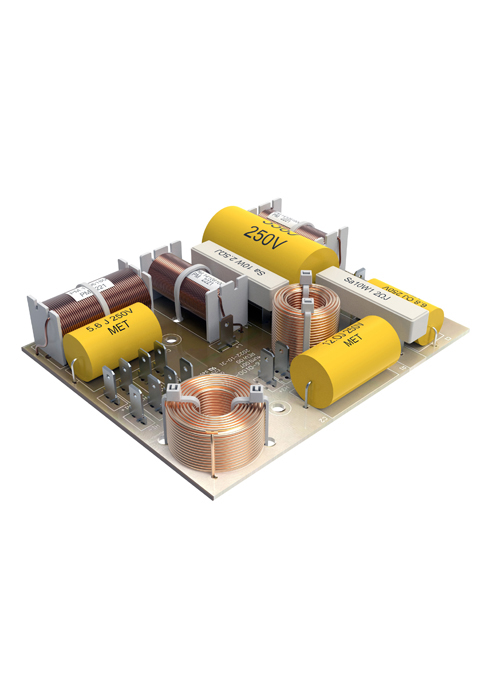

• Advanced passive crossover for best sound quality

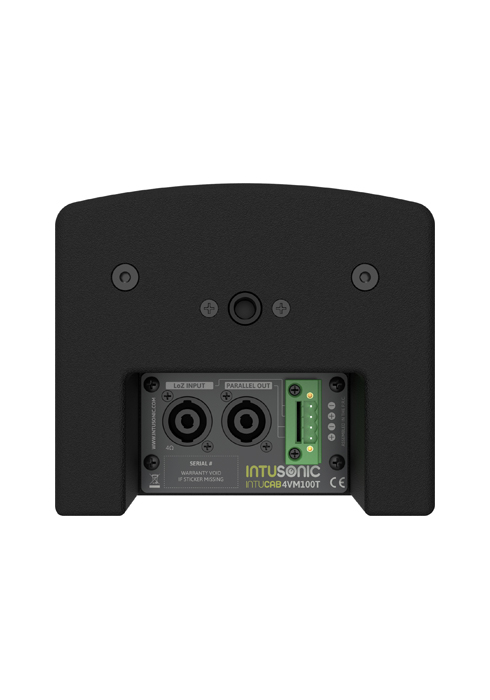

• Dual parallel Speakon-compatible connectors
• 5.0mm 4-pin terminal strip connector (2×2 parallel)

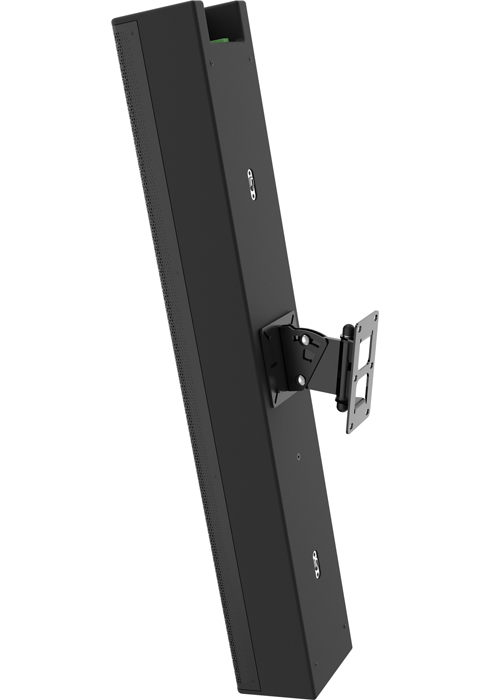

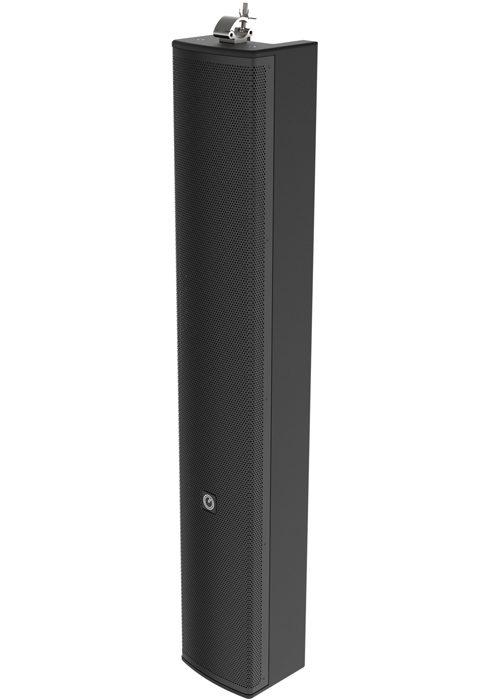

• 75mm VESA (rear) / 1xM10 (top) / 3xM6 mounting point

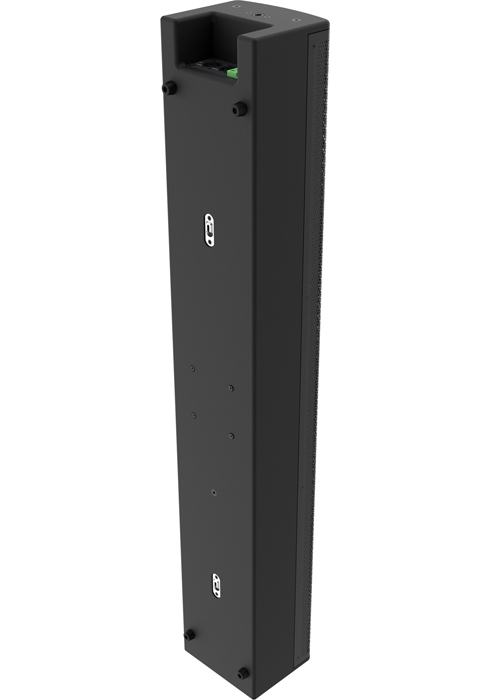

• Two slot mounting plates for flush wall installation
• 12mm MDF construction

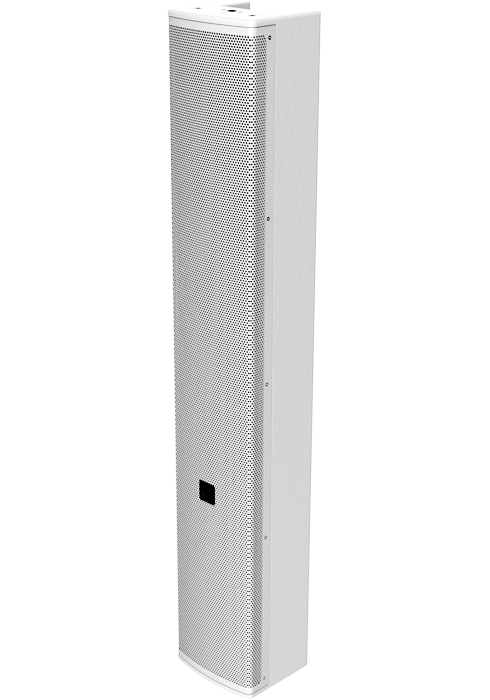

• Structured scratch-resistant paint, black or white

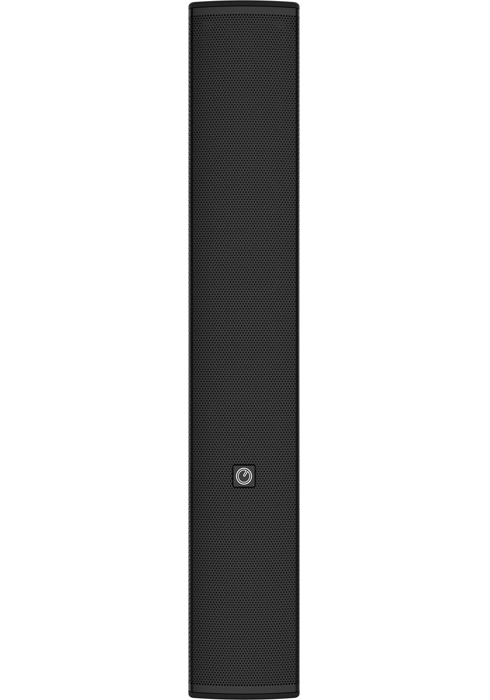

• Rugged steel front grille with cosmetic rear-side foam
• CE/ROHS compliant

• Frequency response (-6 dB): 90Hz-18kHz
• Sensitivity (1W/1m) / Max SPL: 90dB / 114dB
• Dispersion HxV: 120°x30°
• Impedance: 4Ω
• Power Handling: 140W (AES)
• Drivers / Design: 4×4’’ LF (closed) & 4×1’’ SD Tweeter
• Material: 12mm MDF
• Surface: Scratch-resistant paint
• IP Rating: 20
• Dimensions WxDxH: 160x140x1000mm
• Weight: 10.00 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN55035:2017

LVD Directive 2014/35/EU
EN62368-1

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018
