INTUCAB™ UTK 100V Transformer Kit

UTK-W01-UTK60Front_UpLeft_RGB_72dpi_490x430pxUTK-W02-UTK20KitFront_UpRight_RGB_72dpi_490x430pxUTK-W03-UTK60KitFront_UpRight_RGB_72dpi_490x430px

The UTK retrofit speaker line transformer kits allow to add 100V line operation capability to a range of INTUSONIC™ speakers. Available models:

  • UTK20: 20W retrofit speaker line transformer kit matching the 4FW50T
  • UTK60: 60W retrofit speaker line transformer kit matching the 6FP100T

UTK retrofit speaker line transformer kits come with a wide frequency audio transformer and all necessary mounting screws/cables to match the relative speaker.

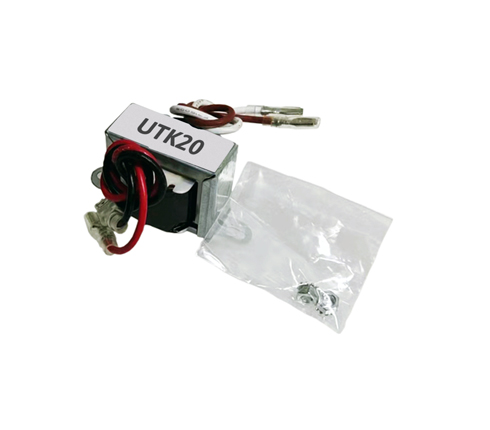

UTK20:

  • Power handling: 20W
  • Frequency response: 50Hz-16Khz
  • Load impedance: 16Ω
  • Core size: EI41
  • Dimensions: WxDxH 67x35x34mm
  • Weight: 0.18 kg
  • Accessories: screws
  • Suitable models: 4FW50T

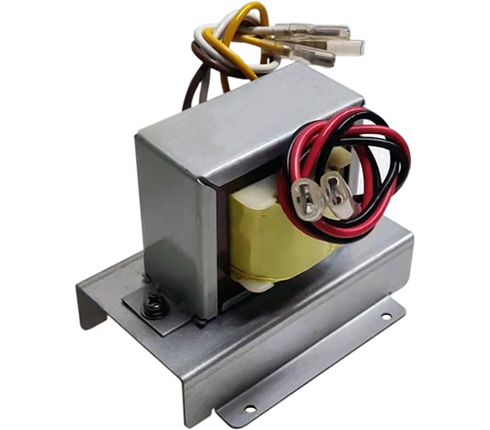

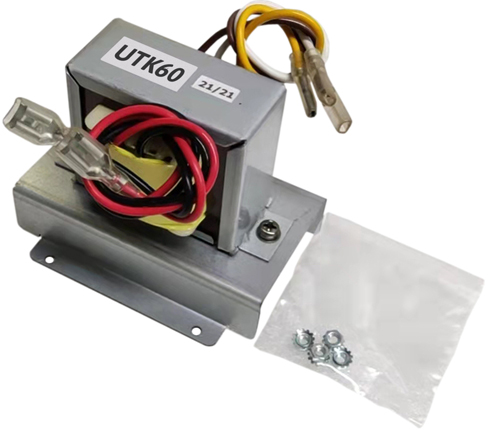

UTK60:

  • Power handling: 60W
  • Frequency response: 50Hz-16Khz
  • Load impedance: 8Ω
  • Core size: EI57
  • Dimensions: WxDxH 90x68x70mm
  • Weight: 0.65kg
  • Accessories: bracket, screws
  • Suitable models: 6FP100T

This product conforms with the following directives/standards/regulations:

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018

Datasheet
Picture archive

Variation 2

DetailsGTIN-13MSRP*
Intusonic IntuCab UTK60 (A) [UV-NPC] SC
Order Code: 1305701
5060502923387Call
Single cartons per master carton (PU): 8
AC Cord: NPC
HS Code: 8504318000
Single carton - Size: 78/100/80mm (0.000624cbm)
Master carton - Size: 7/215/170mm (0.00025585cbm), Weight: 175kg

Variation 1

DetailsGTIN-13MSRP*
Intusonic IntuCab UTK20 (A) [UV-NPC] SC
Order Code: 1306001
5060502923394Call
Single cartons per master carton (PU): 24
AC Cord: NPC
HS Code: 8504318000
Single carton - Size: 50/70/45mm (0.0001575cbm)
Master carton - Size: 23/215/170mm (0.00084065cbm), Weight: 175kg

*The MSRP indicates the manufacturer’s suggested net retail price, and is displayed in USD or another currency automatically converted from USD at the applicable daily exchange rate. The MSRP excludes any VAT (if applicable).
