INTUPAK™ SPA22 Power Station

The INTUPAK™ SPA22 addresses the simple yet decisive question of how to power wall-mounted devices. With a plethora of wall-mounted preamplifiers, amplifiers and wireless receiver panels in the market, most manufacturers count on the installers’ ability to hide a wall wart in a drywall or run a long low-voltage cable from a remote location. Intusonic however delivers the smarter answer in the shape of a sleek and flexible PSU, fitting just into a standard BS5733 wall box offering flush or surface mount options like other Intusonic wall-mounted products. With its symmetrical +-12V low-noise DC output, it provides the groundwork for great, high-headroom audio quality. And with terminal strip outputs plus IntuLink™ in-line RJ45 connections with data throughput and power refresh, it can power both stand-alone preamp products like the VAA22 or provide long-distance power beyond a zoner’s on-board supply abilities to IntuGrid™ wall panels.

• Switching power supply topology with excellent efficiency and low heat emission
• Wide-range AC supply input: 85-265V, 50-60Hz
• Symmetrical low-noise/low-ripple DC output +-12V
• Generous current delivery of 500mA per output (6W @ +12V, 6W @-12V)

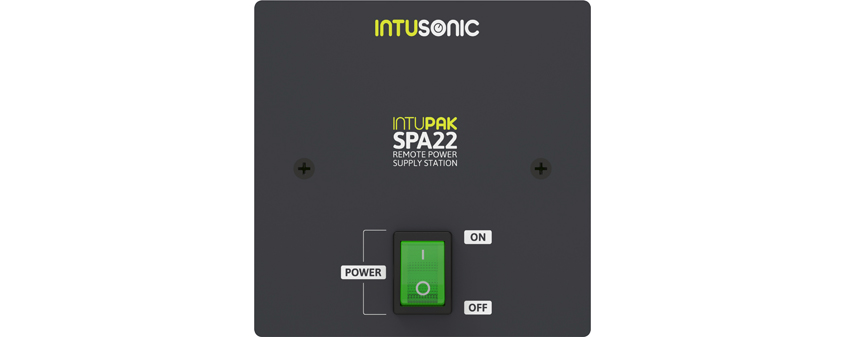

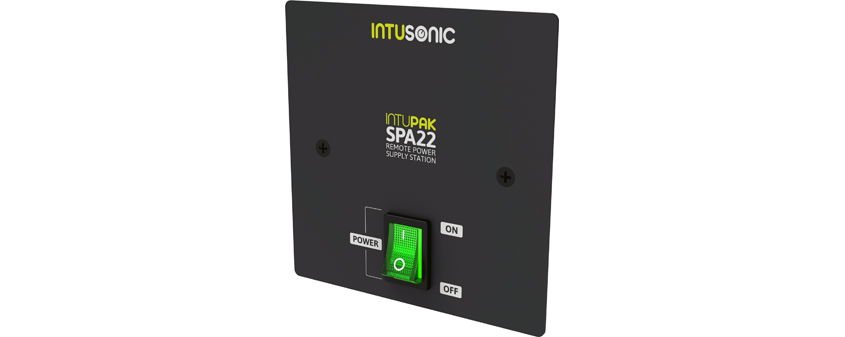

• Illuminated Power on/off switch

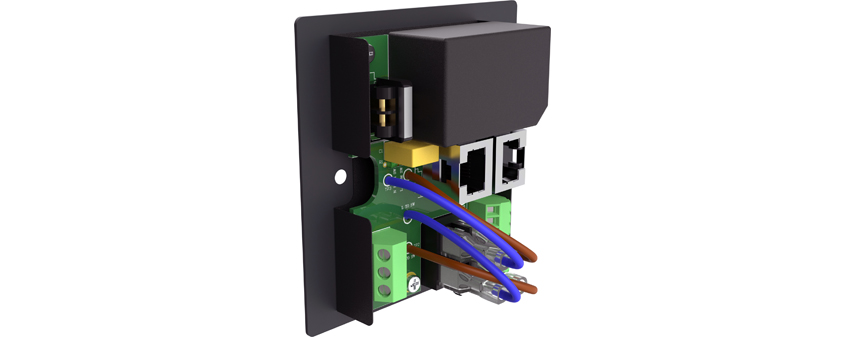

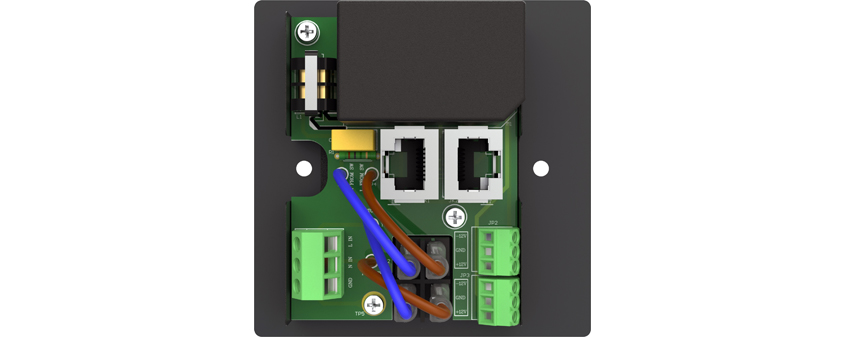

• Dual 3.5mm terminal strips for connection of powered products
• Dual RJ45 IntuLink™ connectors, with data-through and power refresh connection
• 86x86mm standard size with BS5733-compliant mounting points

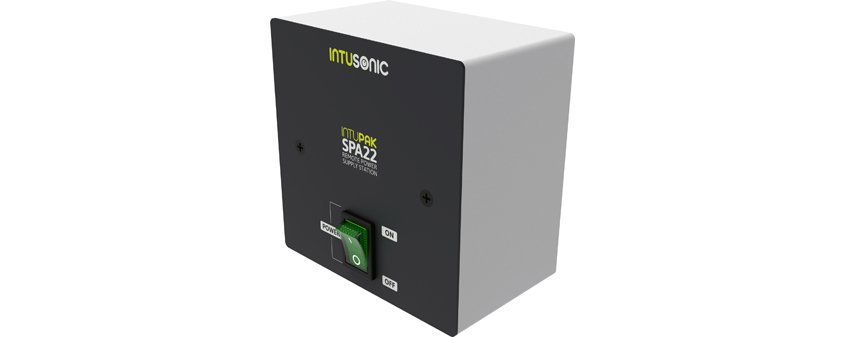

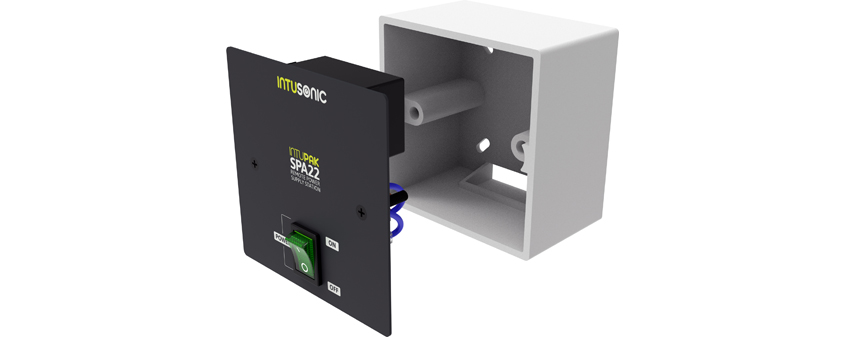

• Single-gang BS5733 wall box (white) supplied with the product
• CE/ROHS compliant

• AC Input: 85-265V AC, 50-60Hz
• Output 1: +12V DC, 500mA (6W)
• Output 2: -12V DC, 500mA (6W)
• Output Connection A: 3.5mm Terminal Strip
• Output Connection B: IntuLink™ RJ45 in-line
• Dimensions WxDxH: 86x86x50 mm (/w knob)
• Mounting depth: 43 mm
• Mounting Standard: BS5733
• Weight: 0.16kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN55035:2017

LVD Directive 2014/35/EU
EN62368-1

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018
