INTUSCAPE™ 4FP40R 4'' O/D Speaker

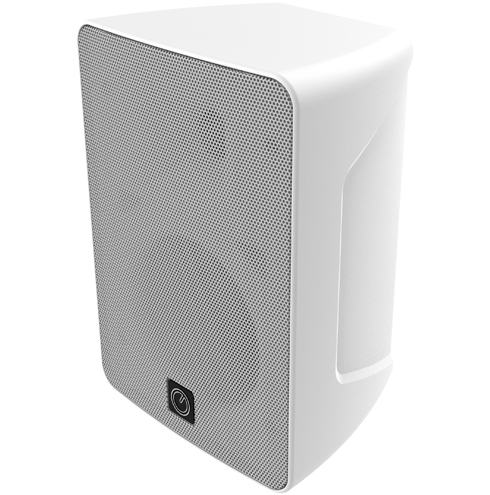

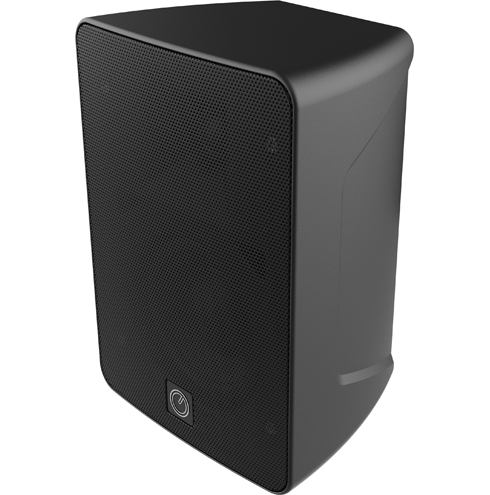

The INTUSCAPE™ 4FP40R is the most compact choice to bring background music to any venue’s outdoor areas. Its one-shell design from impact-proof ABS resin with a recessed baffle insert provides superior protection against rain. A PP cone woofer and a silk dome tweeter likewise withstand the rigors of outdoor use. Nonetheless, the vented design and the controlled dispersion deliver a pristine sound quality. An internal line transformer with switchable load, a real crossover – not just a capacitor – and our unique cable gland cover as well as the ball head bracket complement the elegant looks of this speaker.

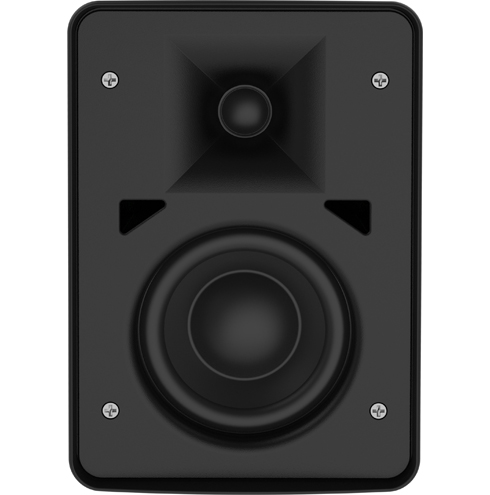

  • 4’’ LF driver in vented enclosure
  • 1’’ silk dome tweeter & wide-dispersion HF wave guide

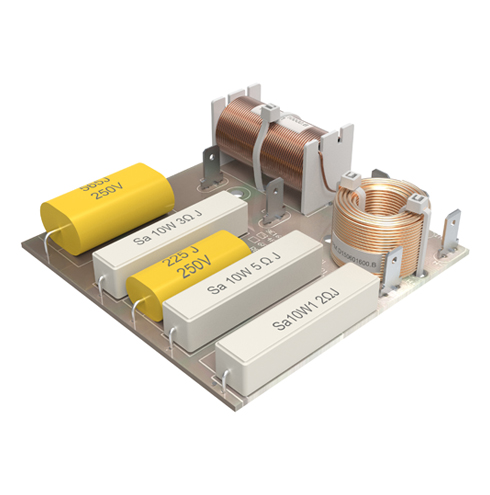

  • Advanced passive crossover for best sound quality
  • Audio-grade internal 100V line transformer (20W max)

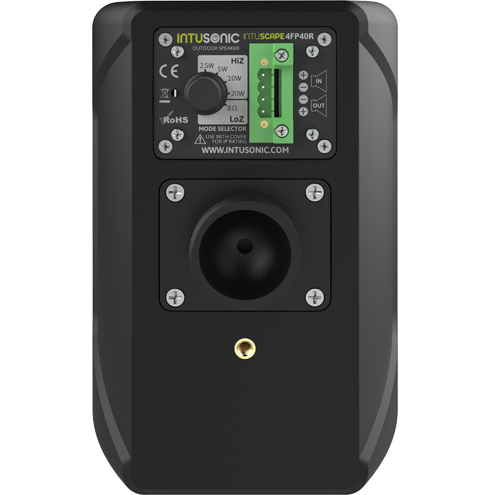

  • Mode switch for 8Ω /  2.5W / 5W / 10W / 20W settings
  • 4P-5.0mm terminal strip for input & parallel output
  • ABS resin body with M6 safety lug mounting point
  • Structured scratch-resistant surface, black or white

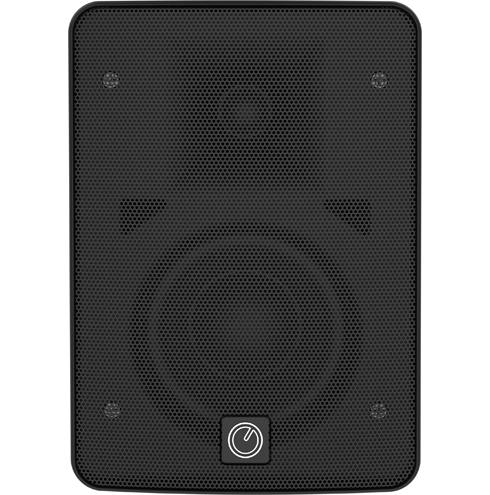

  • Rustproof aluminum front grille

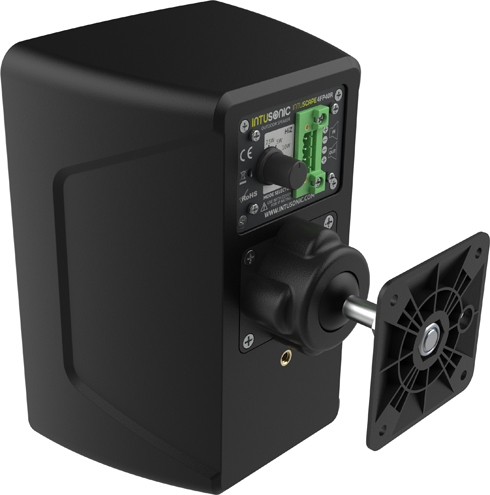

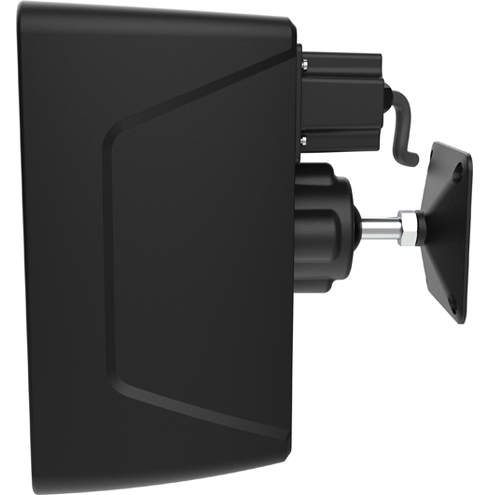

  • Multi-angle ball head bracket with stainless steel rod

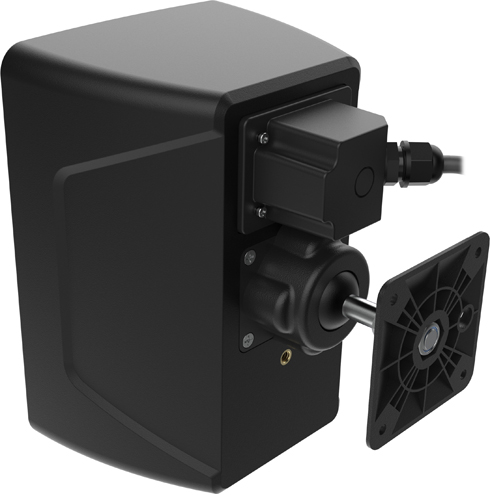

  • Waterproof cable gland cover with 2 mounting angles
  • CE/ROHS compliant
  • Frequency response (-6 dB): 80Hz-15.0kHz
  • Sensitivity (1W/1m) / Max SPL: 84dB / 101dB
  • Dispersion HxV: 90° x 80°
  • Impedance: 8Ω / 100V-2.5W/5W/10W/20W
  • Power Handling: 30W (AES)
  • Drivers / Design: 4.0’’ LF (vented)  & 1’’ SDT
  • Material: ABS
  • Surface: Texture
  • IP Rating: 33
  • Dimensions WxDxH: 153x120x217mm
  • Weight: 2.18 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU

LVD Directive 2014/35/EU

ROHS2 Directive 2011/65/EU & 2015/863/EU

User manual
Picture archive

Variation 1

Intusonic IntuScape 4FP40R (A) (HiLoZ Black) [UV-NPC] SC
Order Code: 1306601
Single cartons per master carton (PU): 4
AC Cord: NPC
HS Code: 8518220000
Single carton - Size: 200/170/305mm (0.01037cbm), Weight: 2kg
Master carton - Size: 48/415/355mm (0.0070716cbm), Weight: 325kg

Variation 2

Intusonic IntuScape 4FP40R (A) (HiLoZ White) [UV-NPC] SC
Order Code: 1306611
Single cartons per master carton (PU): 4
AC Cord: NPC
HS Code: 8518220000
Single carton - Size: 200/170/305mm (0.01037cbm), Weight: 2kg
Master carton - Size: 48/415/355mm (0.0070716cbm), Weight: 325kg
